72-Cell Six-Cluster Flood LED Work Light

White+Yellow

In stock

45C-BW-F-F32

Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support Sea · Air · Land Freight
Technical & After-Sales Support

Product details

The 72-Cell Six-Cluster Flood LED Work Light brings six-module square face to a square bracket-mounted work-light format. A flood distribution places this model in applications centered on task illumination with a separately visible accent or secondary-light element. Its profile is most useful when the optical arrangement and available installation space are evaluated together.

The model suits buyers whose installation requires that the visible amber or dual-color element is required alongside the main work-light face, while the square bracket-mounted housing and six-module square face match the available mounting position. Its use case centers on custom equipment builds and upfits that call for a verified white/amber configuration. Equipment fit should be confirmed through the electrical connection, installation envelope, bracket direction and work-area geometry.

Material Aluminum
Input Voltage 9-36V
Ingress Protection IP68/IP69K
LED Configuration Main light — 32 × 1 W (SMD 3030) DRL — 3 × 0.5 W (SMD 3030)
Rated Power 25W
Operating Current 2.1A
Theoretical Luminous Flux 3200LM
Light Color White+Yellow
Beam Pattern Flood
Cable 25cm
Certificate Listing CE /ECE R10

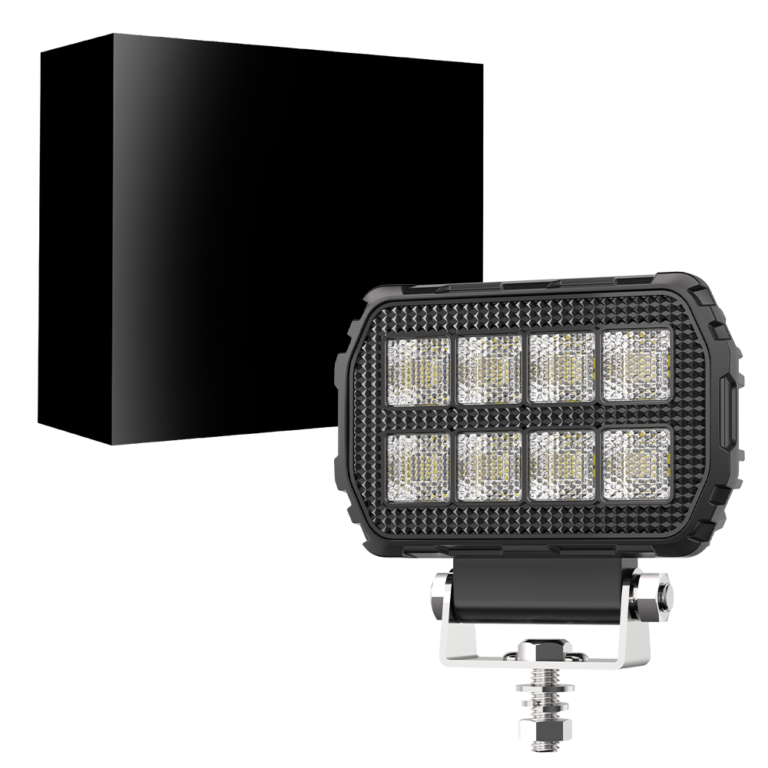

Package Dimensions 130 × 130 × 60 mm
Gross Weight Per Set 485g

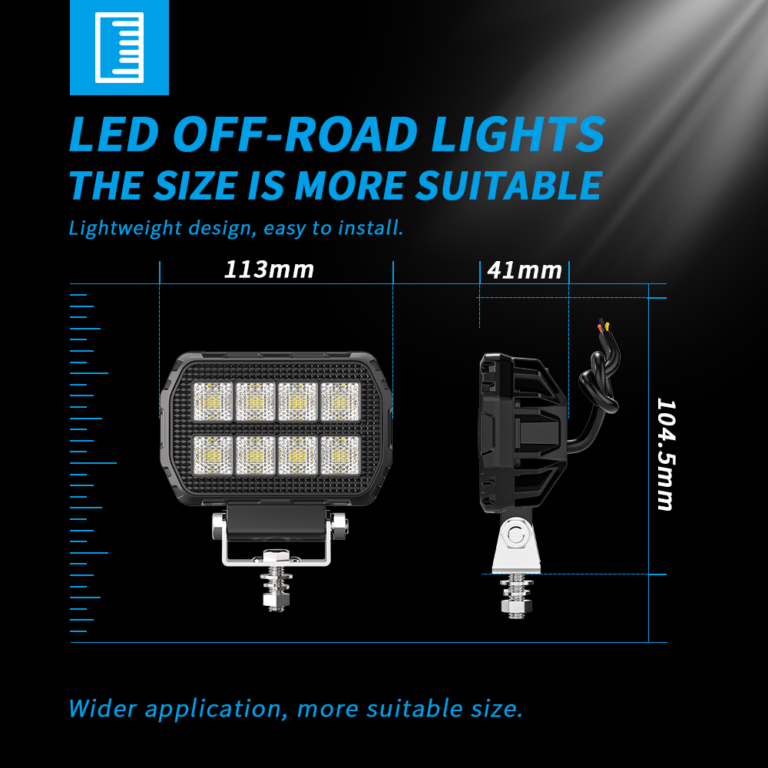

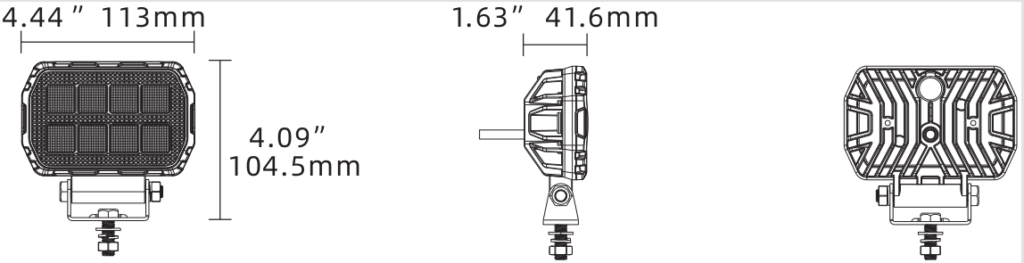

Dimensions

4.5´LED WORK LIGHTS
