5-Inch Off-Road Spot Light

COLOR : White+Yellow

In stock

5C01

Custom products, branding & packaging
3-Year Warranty protection
Global Shipping Support Sea · Air · Land Freight
Technical & After-Sales Support

Product details

This nominal 5-inch off-road spot light places four circular reflectors in an upright, two-by-two arrangement. An amber diamond at the center and amber corner elements give the front a distinctive outline alongside the white main light. The U-shaped bracket sits below the housing, providing a clear mounting arrangement to consider when planning an auxiliary front-light installation.

Choose this format when an upright four-reflector face suits the vehicle layout better than a horizontal pod. It provides a middle-sized option within the TERRA collection, between the compact pods and the larger multi-reflector lamp. Check the available space around the bracket, the rear clearance and the cable route before selecting the final mounting position.

Power 82.5 W
Beam Pattern Spot + DRL

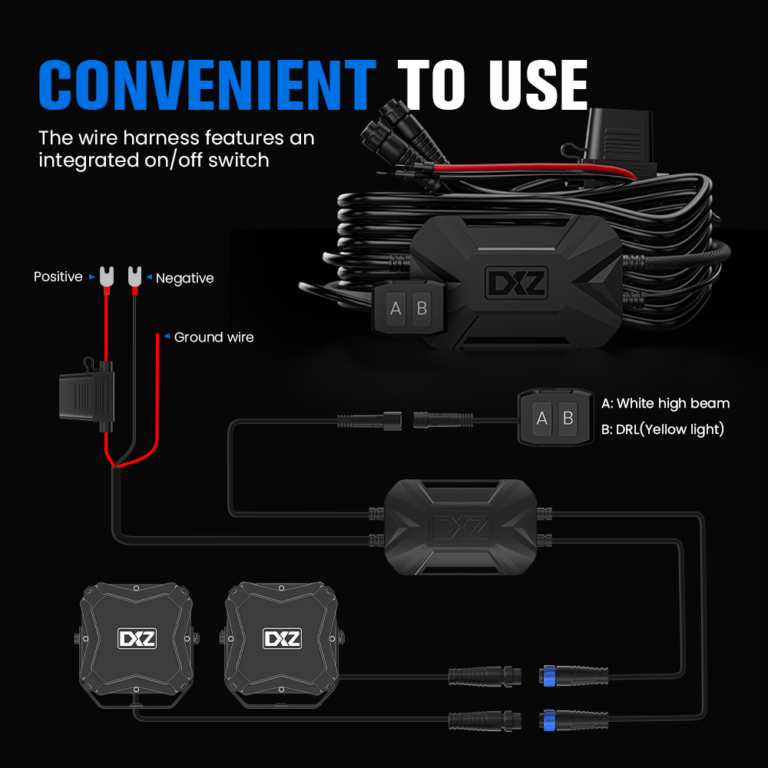

Light Functions White main light; amber DRL

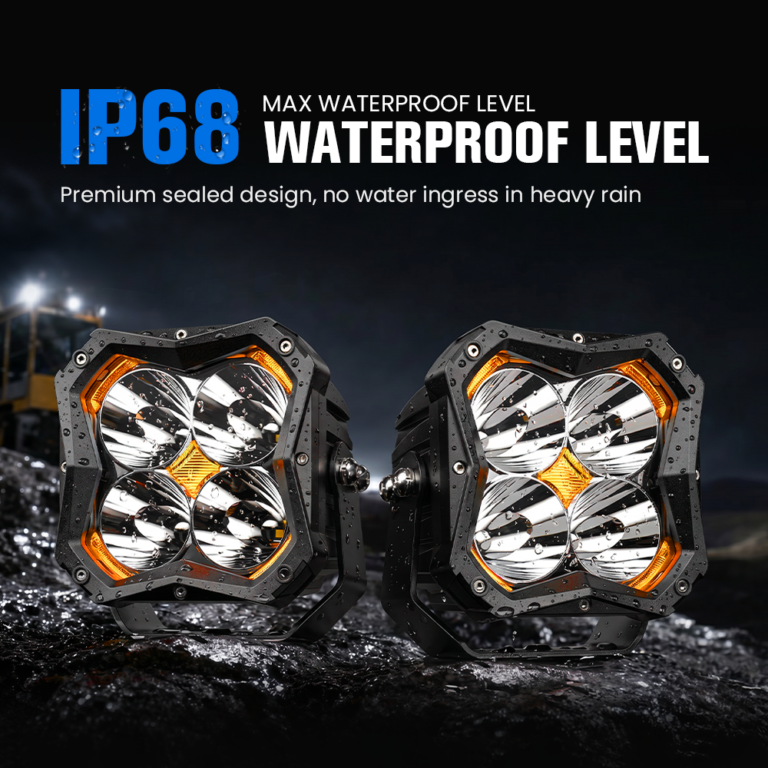

IP Rating IP68
Cable Length 3 m

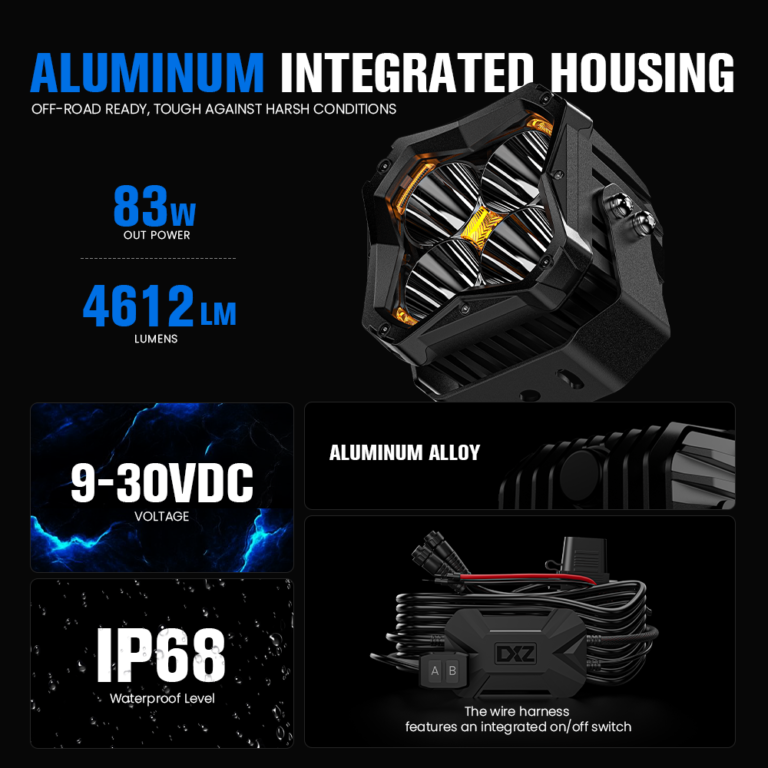

Housing Material Aluminum
Nominal Size 5 inch

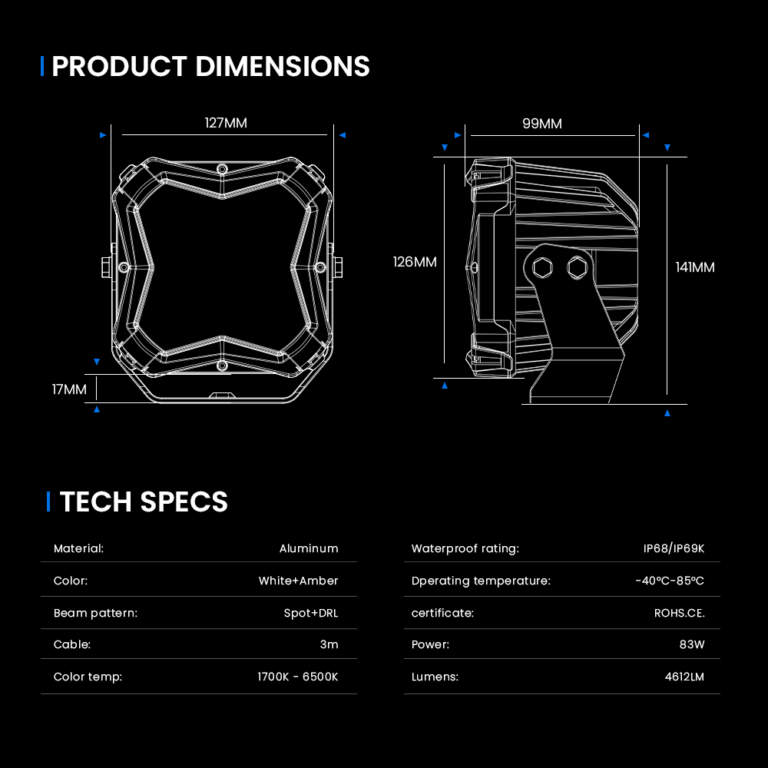

Lamp Dimensions (W × H × D) 126 × 141 × 99 mm
Gross Weight per Set 4000 g
Carton Quantity 5 sets
Carton Gross Weight 21 kg
Package/Size 294×298×126mm
CTN/CM 65×31×31cm
QTY/CTN 5Set
G.W/Set 4000g
G.W 21Kg
Warranty Period 3 Years

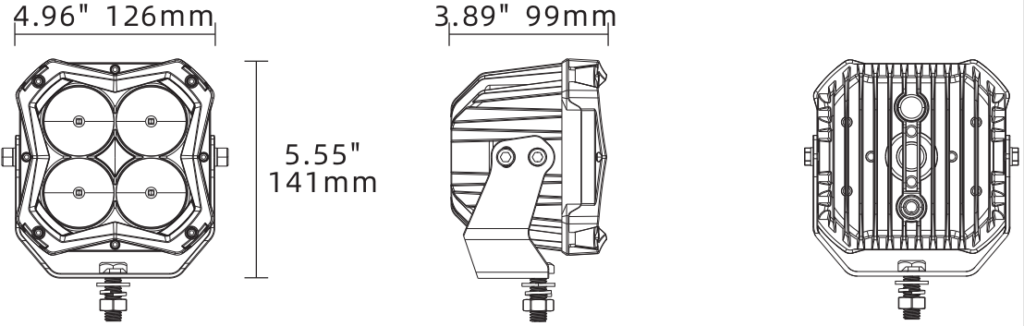

Dimensions

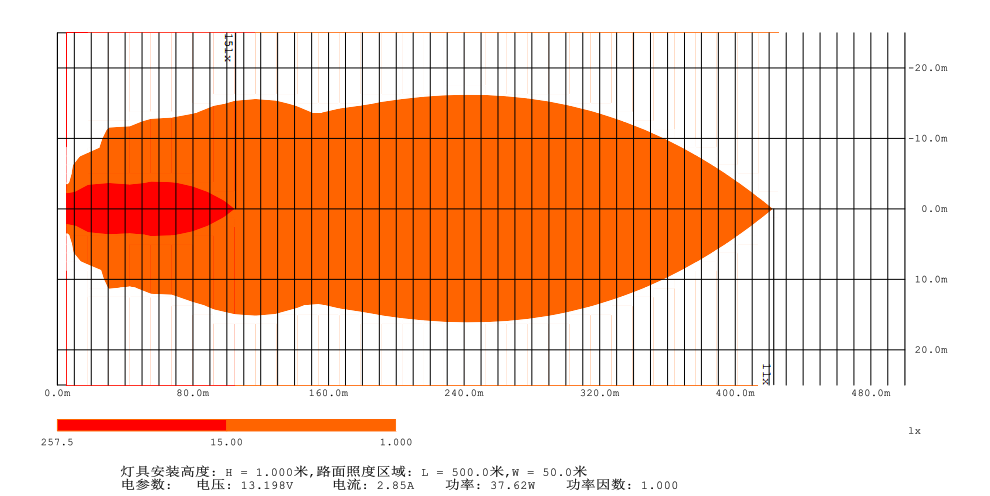

Heat Map
