3-Inch Flush-Mount Off-Road Spot Light Kit

BF3-B4Xpor is a 3-inch flush-mount off-road spot light set with four main optics and yellow DRL. Its mounting ears suit an integrated panel installation within the DXZ off-road lighting range.

When should you choose a flush-mount off-road spot light?

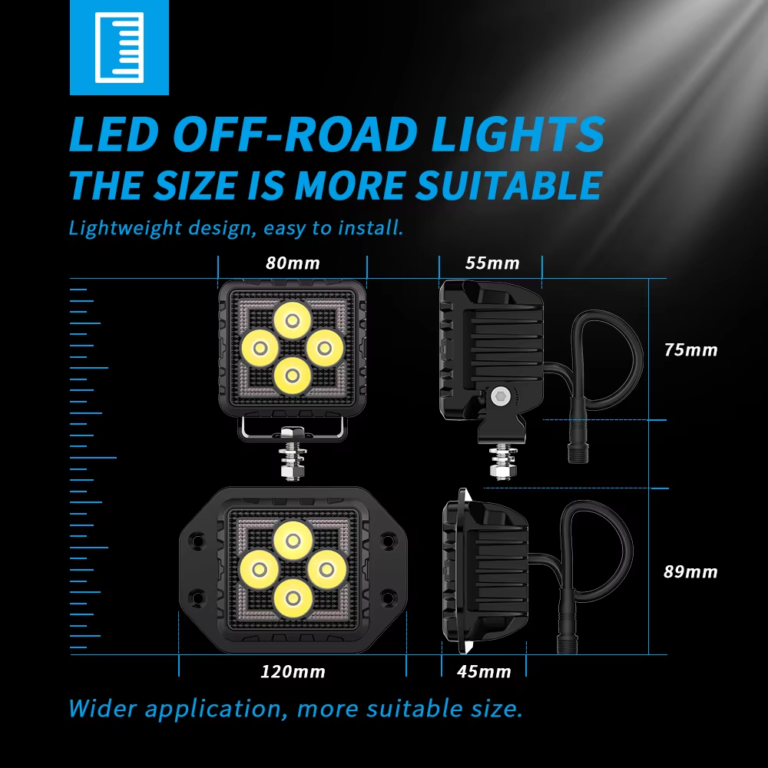

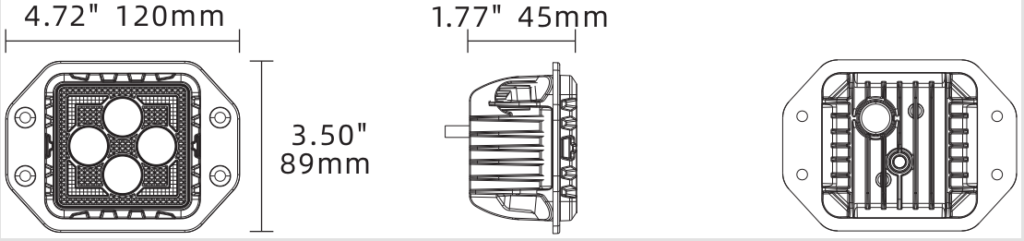

Choose the flush-mount format when the mounting face needs to sit against a panel or bumper surface. The lamp envelope is 120 × 89 × 45 mm; use the installation drawing to plan the opening and fixing points. For an external adjustable bracket, compare the BF3-A4Xpor spot light.

Does your flush-mount position need spot or combo optics?

The four-optic spot beam suits a forward-focused auxiliary-light task. If the same location must also cover nearby ground, compare the BF3-B6por combo-beam version. The trail beam guide helps assign those lighting roles before you choose the mounting position; BF3-B4Xpor accepts 9-36V DC and is specified at 18W / 1.5A at 12V.

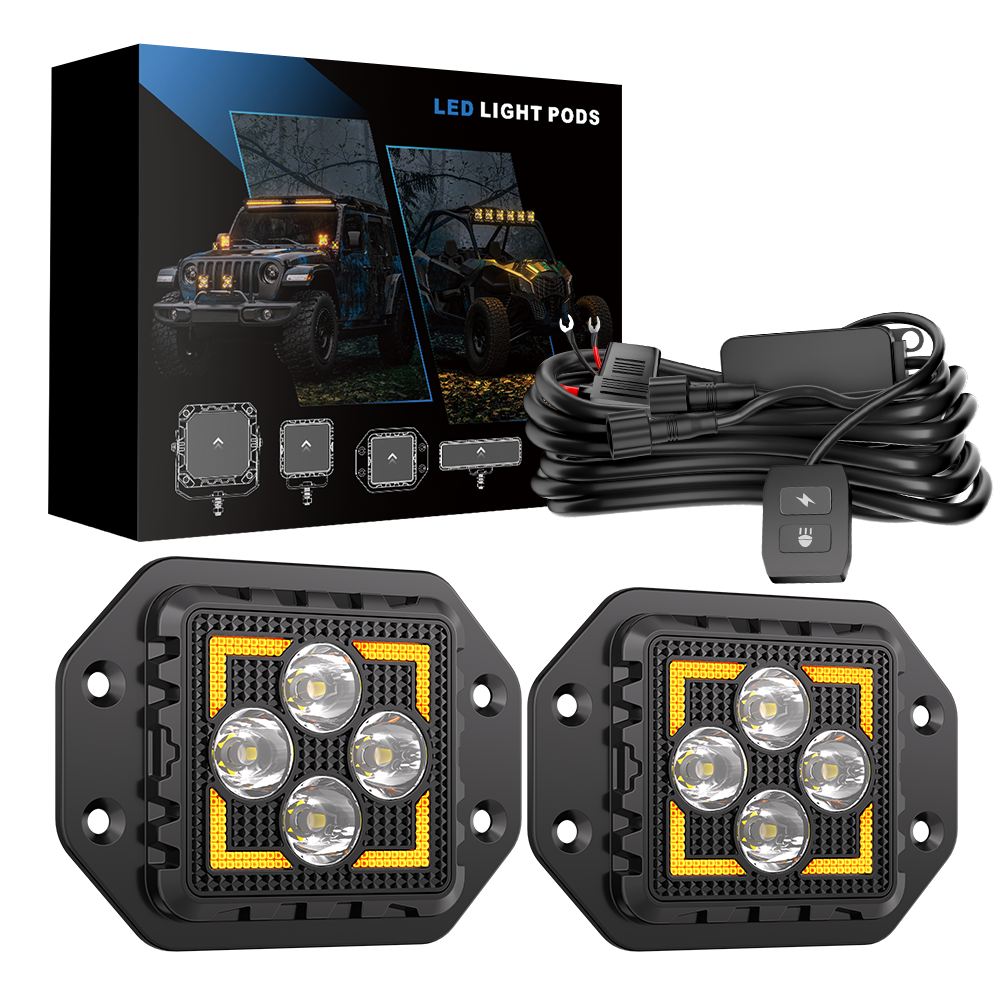

What is included with BF3-B4Xpor?

The lamp set includes a wiring harness and packaging. Send DXZ sales the panel layout and required quantity to quote the flush-mount configuration. Wiring changes, branding and carton requirements can be discussed through the OEM/ODM service.
